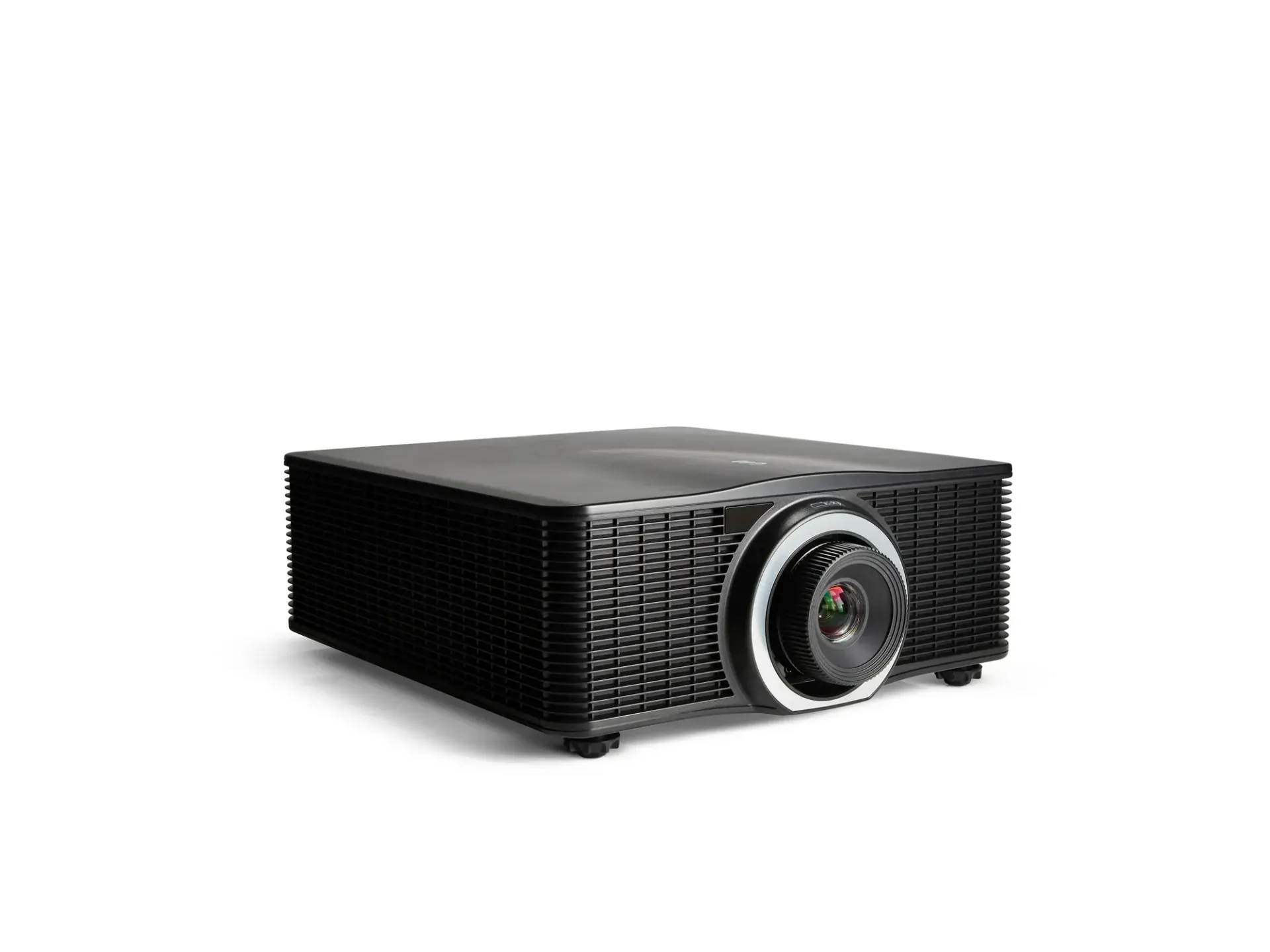

Barco G62-w14 Laser Projector

$14,500.00

The G62-W14 expand the single-chip offering with a quality WUXGA projector of 13,600 lumens. It opens up the possibilities to a wider range of applications while still relying on the valued Barco service and support.


The laser phosphor light source ensures great image quality on the one hand, but also lower maintenance compared to most lamp-based projectors on the market. Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer.


The G62 models enable HDMI™ 2.0 input capabilities and higher bandwidth than its predecessors, which makes them 4K compatible and 3D capable to visualize your high-quality content at its best.

The projectors are available in black and fully white chassis, allowing you to choose the perfect fit for your specific environment. Their uniform compact size, the compatibility with other Barco products and the wide lens shift range enlarge the projectors flexibility.



Add to Cart

  • SPECIFICATIONS

    General specifications

    Projector type

    • Single chip DLP laser phosphor projector

    Resolution

    • 1,920 x 1,200 (WUXGA)

    Brightness

    • 11,500 ANSI lumens 12,800 center lumens 13,600 ISO lumens

    Brightness uniformity

    • 90%

    Contrast ratio

    • 1,200:1 sequential; 6,000:1 dynamic; Extreme black: 750,000:1

    Light source

    • Laser phosphor

    Light source lifetime

    • Up to 20,000hrs

    Aspect ratio

    • 16:10

    Orientation

    • 360° rotation, no restrictions

    Sealed DLP™ core

    • Yes

    Color correction

    • Yes

    CLO (constant light output)

    • Yes

    Image processing

    • Embedded warp & blend possible via Ptoolset

    3D

    • Active stereoscopic 3D

    Lens type

    • G-lenses - 0.36:1 / 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.53:1 / 1.52-2.92:1 / 2.90-5.50:1

    Optical lens shift

    • Vertical up to 100%, depending on lens
    • Horizontal up to 30%, depending on lens
    • Motorized zoom and focus
    • Motorized lens shift

    Inputs

    • 2x HDMI™ In (version 2.0) (with locking screw) / 1x DVI-D (only support digital signal) / 1x HDBaseT / 1x 3D SYNC In / 1x 3G-SDI

    Input resolutions

    • Up to 4K @60Hz
    • Refresh rates: 24Hz to 60Hz for WUXGA and 4K/4KUHD (4096 x 2160 / 3840 x 2160)
    • 4K input signals will be scaled to the projector’s output resolution

    Software tools

    • Projector Toolset and Insight Management Suite (IMS)

    Control

    • IR, RS232, RJ45, 3.5mm phone jack for wired remote

    Network connection

    • 10/100 Ethernet, RJ45

    Power requirements

    • 100-240V / 50-60Hz

    Power consumption

    • 810W nominal, 970W maximum

    Standby power

    • less than 0.5W

    BTU per hour

    • 2,747 BTU/h nominal; 2883 BTU/h maximum

    Noise level (typical at 25°C/77°F)

    • 35dB(A) - 39dB(A) depending on the used mode

    Dimensions (WxLxH)

    • without feet: 484 x 529 x 195 mm / 19.1 x 20.8 x 7.7 inch
    • with feet: 484 x 529 x 206 mm / 19.1 x 20.8 x 8.1 inch

    Weight

    • without lens: 22.7 kg / 50.1 lbs

    Standard accessories

    • Power cord, wireless remote control

    Certifications

    • CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI

    Warranty

    • Limited 3 years parts and labor
