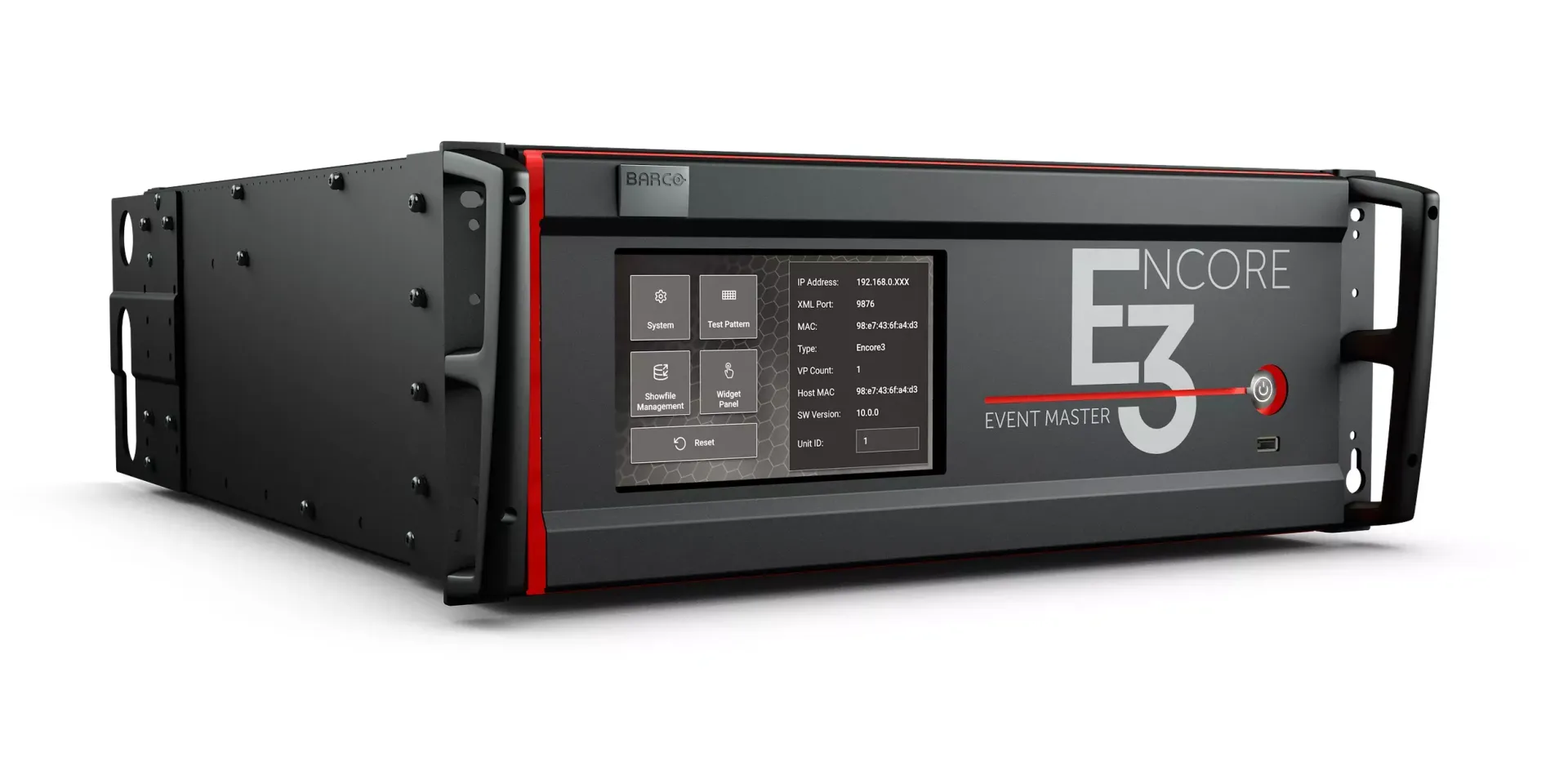

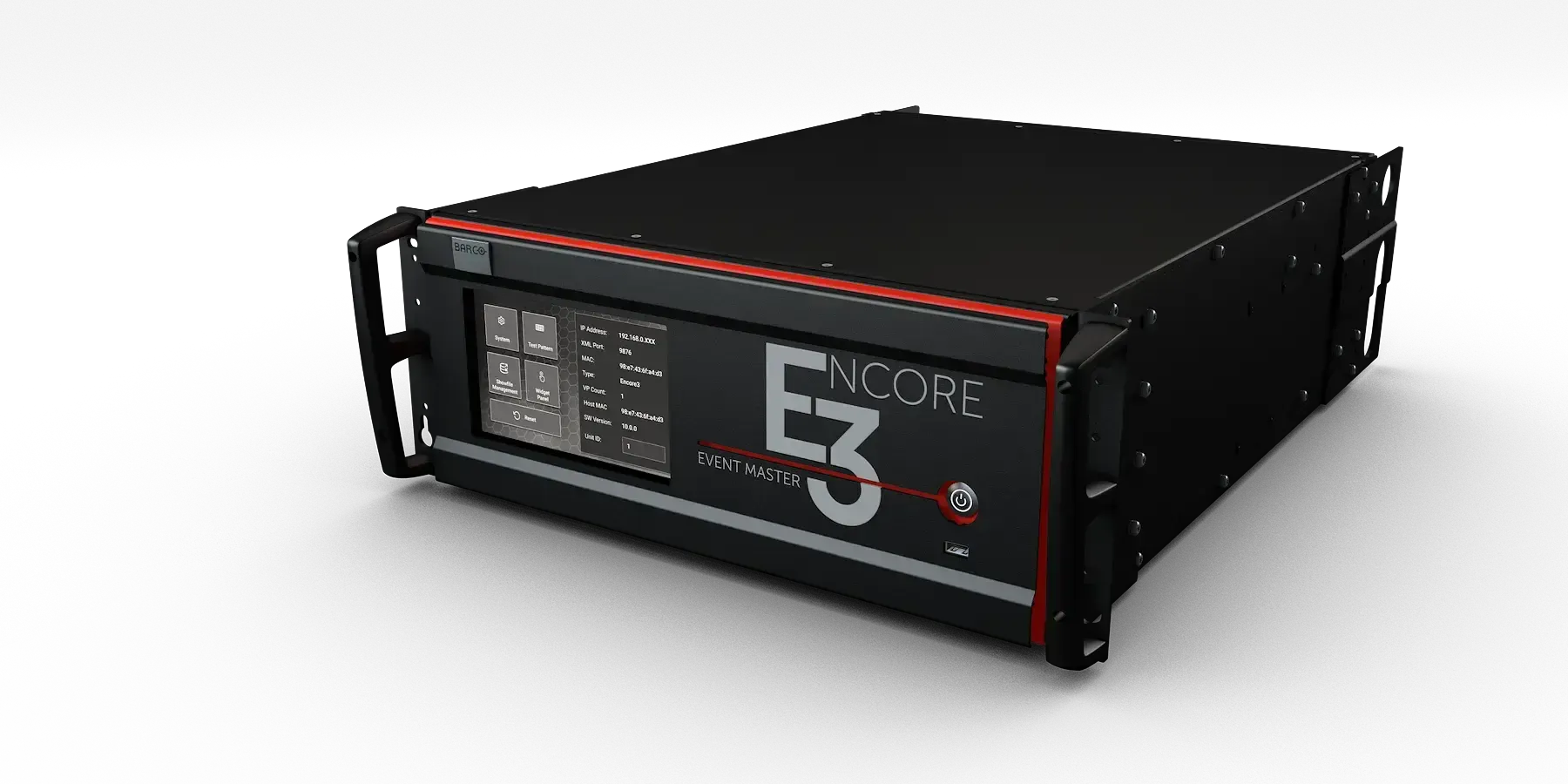

Barco Encore 3 Image Processor

$79,000.00

The Barco Encore3 image processing platform is nothing short of a game-changer.


We’re giving every live event AV professional broader canvas space, expanded system resources by easy linking, and advanced transition between layers during runtime. High-quality 4K processing with unrivaled flexibility.


All boxed into one future-proof solution, for premium peace of mind.


The Encore3 supports a boundless canvas with 8x 4K60 PGM outputs at 12 bits 4:4:4 processing with always available 8x 4K60 layers per screen.


Call on embedded audio, screen composition for layered videos, Multiviewer as a source and the ability to manage all your screens.



Build your own configuration

Event Master Encore3 will have a standard, finished and stocked configuration. But as it’s a scalable and modular system, it will also be available as BTO - “Build To Order” - system.

  • Inputs Up to 7 input capable card slots, each input card supports up to 4x 4K@60p inputs
  • Outputs Up to 4 output capable card slots, each output card supports up to 4x 4K@60p outputs
  • At first release, the system offers the flexibility to include up to two chassis linked together


Video inputs

Up to 7 input capable card slots to occupy with Event Master Gen2 cards

  • Each input card supports up to 4x 4K @60p inputs


Standard Encore3 Configuration

  • 16x 4K @60p inputs
  • Up to 4x HD/3G/6G/12G SDI connectors
  • Up to 9x HDMI™ 2.0 (up to 4096x2160 @60Hz)
  • Up to 5x DisplayPort 1.2 (up to 4096x2160 @60Hz)


Video outputs

Up to 4 output capable card slots to occupy with Event Master Gen2 cards

  • Each output card supports up to 4x 4K @60p outputs


Standard Encore3 Configuration

  • 8x 4K@60p outputs
  • Up to 4x HD/3G/6G/12G SDI connectors
  • Up to 5x HDMI™ 2.0 (up to 4096x2160 @60Hz)
  • Up to 1x DisplayPort (up to 4096x2160 @60Hz)



Add to Cart

  • SPECIFICATIONS

    Live effects canvas

    • Boundless canvas with 8x 4K60 PGM outputs

    Genlock

    • Analog reference input/Output on BNC connectors;
    • bi-level and blackburst at SD and tri-level at HD

    Program output

    • Up to 8 program outputs configurable as single screens or tiled/blended widescreens
    • Configurable for up to 8x 4096 X 2160 @60p
    • Independent edge blending/feathering control for all four sides

    Scaled AUX outputs

    • User definable for up to 8x 4096 x 2160 @60p
    • Each output card supports up to 2x AUX ouputs

    Mixers

    • Positionable non-scaled background mixer per output screen
    • Independent layer transitions or full Preview/Program transitions
    • Pre-assigned 4 mixable / 8 single (up to 16 mixable / 32 single) scalable PIP/key layers per output screen

    Still stores

    • Store up to 2160MB (~60 4K60) of still images, supporting stills up to a staggering 160,000px in either horizontal or vertical dimensions

    Layer effects

    • Borders (hard, soft, halo) and drop shadows
    • Color effects
    • Luma, chroma and Cut/Fill keys
    • PIP moves via Keyframes

    Multiviewer

    • 2x 4K @60p MultiViewer as source that be sent to any output or layer.
    • Flexible user-definable layouts
    • Monitor all Inputs and screens PVW & PGM

    Expandability

    Standard Encore3 Configuration includes:

    • 1x Quad 100 G High Speed Expansion Link Card for system expansion; each link card supports 15* x 4K60 in & out per card
    • 2x 100G QSFP28 2 meter DAC cables
    • Encore3 ships with the ability to link 2 chassis for expansion at first release
    • Link units to increase available Inputs and Outputs for larger tiled/blended widescreen applications
    • Easily expandable for larger display applications via 4x QSFP28 link connection; quad 100G High Speed Expansion Link Card required.

    HDCP

    • HDCP compliance determined by installed cards

    Control

    • Event Master Toolset (V10.x or later) for PC or MAC
    • Event Master controllers
    • WebUI
    • Ethernet RJ-45, 1000/100/10 Mbps autosense

    Serviceability

    • Field-Serviceable I/O cards (not hot-swappable)
    • Hot-swappable dual-redundant power supplies

    Dimensions

    • Height: 175.5 mm (6.9 in) - 4 RU rackmount
    • Width: 431.8 mm (17.0 in) without chassis handles, 485.3 mm (19.1 in) with chassis handles attached
    • Depth: 590.54 mm (23.3 in) from front panel to rear panel without handles or connector protectors, 672.29 mm (26.5 in) overall

    Weight

    • Standard config.: 29 kg / 64 lb Standard config shipped with flight case: 48.5 kg / 107 lb Empty chassis: 26.3 kg / 58 lb

    Power

    • Input power: 100-240Vac, 50/60Hz, 12-5A (x2), 1,100 W
    • Dual-redundant, hot-swappable power supplies

    Warranty

    • 3 years parts and labor
